Find interference regions between polymesh CAD geometry and point cloud data. The Clash reporting data is stored in Excel.


How to detect clashes between CAD data and point clouds

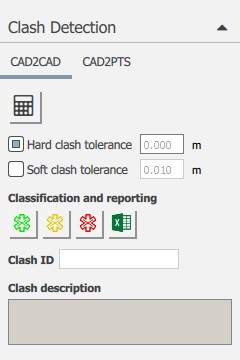

The Clash Detection tool selects points that intersect polymesh CAD data within the clash boundary search distance. All visible objects are processed at the current display resolution.

The point selection can be saved as a new object node for analysis and reporting.

Clash Reporting

Each clash occurrence is marked with a unique ID, position, classification, and description. The clash information is saved to an Excel document in the project's directory.
